阿里云域名使用cert-manager通过acme申请https证书(dns01方式)

前提条件

  • k8s集群<1.19
  • cert-manager
  • ingress-nginx
  • 阿里云域名

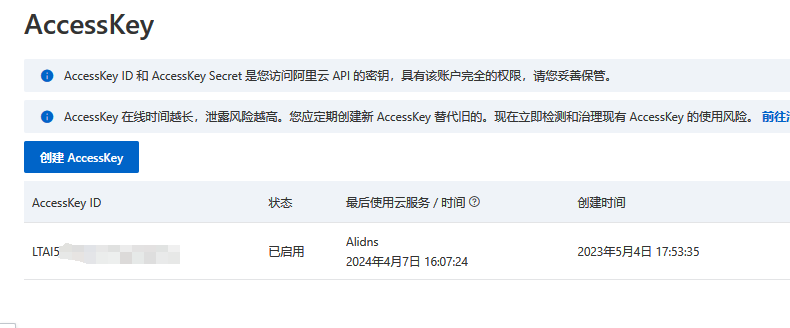

申请AccessKey

登录阿里云域名所在账号，开通AccessKey并记录下来

image-20240416171250857

将access-key和secret-key转换成base64

image-20240416171702060

将转换后的值保存为k8s secret

1
2
3
4
5
6
7
8
apiVersion: v1
kind: Secret
metadata:
  name: alidns-secret
  namespace: cert-manager
data:
  access-key: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
  secret-key: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

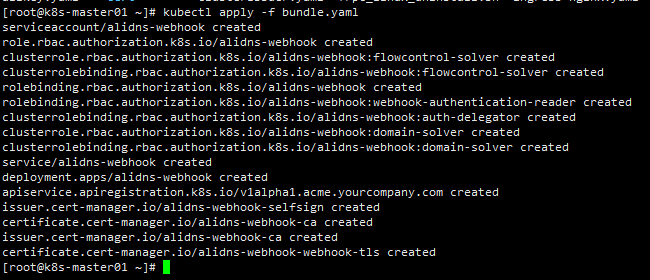

安装alidns-webhook

1
kubectl apply -f https://raw.githubusercontent.com/pragkent/alidns-webhook/master/deploy/bundle.yaml

image-20240416172108074

image-20240416172143884

启动一个http服务

测试用，如果有服务可跳过

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
kind: Service
apiVersion: v1
metadata:
  name: demo
spec:
  selector:
    app: demo
  ports:
    - name: http-port
      port: 80
      protocol: TCP
      targetPort: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo
  labels:
    app: demo
spec:
  replicas: 1
  selector:
    matchLabels:
      app: demo
  template:
    metadata:
      labels:
        app: demo
    spec:
      containers:
        - name: nginx
          image: nginx:1.21.6
          env:
            - name: TZ
              value: Asia/Shanghai
          ports:
            - containerPort: 80

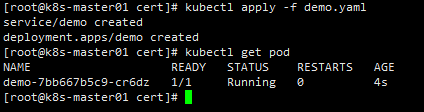

image-20240415164809387

image-20240415165231793

颁发机构（CA）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-prod
spec:
  acme:
    # The ACME server URL
    server: https://acme-v02.api.letsencrypt.org/directory
    # Email address used for ACME registration
    email: [email protected]
    # Name of a secret used to store the ACME account private key
    privateKeySecretRef:
      name: letsencrypt-prod
    # Enable the HTTP-01 challenge provider
    solvers:
    # An empty 'selector' means that this solver matches all domains
    - dns01:
        webhook:
          # 注意这里要改动，在https://raw.githubusercontent.com/pragkent/alidns-webhook/master/deploy/bundle.yaml中也要改动对应的groupName
          groupName: acme.yourcompany.com
          solverName: alidns
          config:
            region: ""
            accessKeySecretRef:
              name: alidns-secret
              key: access-key
            secretKeySecretRef:
              name: alidns-secret
              key: secret-key

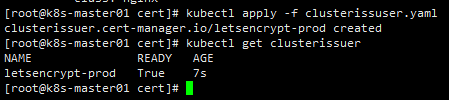

image-20240416172852330

签发证书

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-ingress
  annotations:
    nginx.ingress.kubernetes.io/force-ssl-redirect: "true" # 强制转换https
    cert-manager.io/cluster-issuer: letsencrypt-prod # ClusterIssuer名称
spec:
  ingressClassName: nginx
  tls:
    - secretName: test-tls # 证书名
      hosts:
        - vsoul.cn # 域名
  rules:
    - host: vsoul.cn # 域名
      http:
        paths:
          - path: /
            #pathType: ImplementationSpecific
            pathType: Prefix
            backend:
              service:
                name: demo # 服务名
                port:
                  number: 80 # 服务的端口号 service port，非pod port

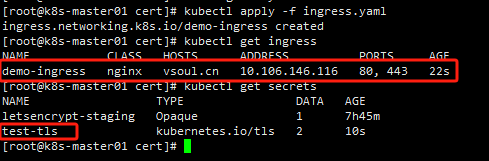

image-20240416173038711

等待certificate状态为True

image-20240416173455625

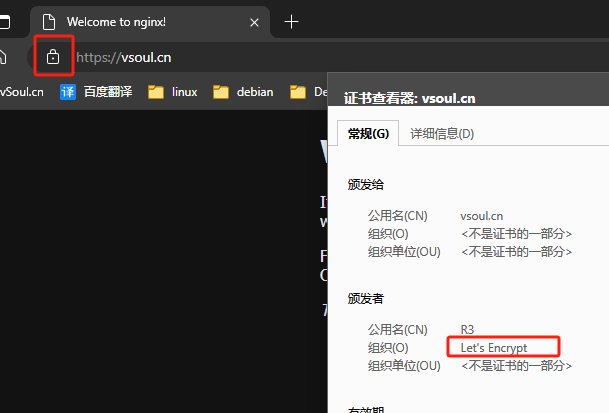

测试

浏览器通过https访问域名

image-20240416173343380

故障排查

Certificate => CertificateRequest => Order => Challenge

以此使用kubectl get、describe查看状态和日志
