官方文档：Istio / 镜像

启动httpbin服务（演示服务）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
# v1版本
cat <<EOF | istioctl kube-inject -f - | kubectl create -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: httpbin-v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: httpbin
      version: v1
  template:
    metadata:
      labels:
        app: httpbin
        version: v1
    spec:
      containers:
      - image: docker.io/kennethreitz/httpbin
        imagePullPolicy: IfNotPresent
        name: httpbin
        command: ["gunicorn", "--access-logfile", "-", "-b", "0.0.0.0:80", "httpbin:app"]
        ports:
        - containerPort: 80
EOF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
# v2版本
cat <<EOF | istioctl kube-inject -f - | kubectl create -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: httpbin-v2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: httpbin
      version: v2
  template:
    metadata:
      labels:
        app: httpbin
        version: v2
    spec:
      containers:
      - image: docker.io/kennethreitz/httpbin
        imagePullPolicy: IfNotPresent
        name: httpbin
        command: ["gunicorn", "--access-logfile", "-", "-b", "0.0.0.0:80", "httpbin:app"]
        ports:
        - containerPort: 80
EOF

创建服务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
kubectl create -f - <<EOF
apiVersion: v1
kind: Service
metadata:
  name: httpbin
  labels:
    app: httpbin
spec:
  ports:
  - name: http
    port: 8000
    targetPort: 80
  selector:
    app: httpbin
EOF

创建网关

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: httpbin-gw
spec:
  selector:
    app: httpbin
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - "*"
EOF

创建目标规则

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: httpbin
spec:
  host: httpbin
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
EOF

创建虚拟服务

将流量全部转发到v1版本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: httpbin
spec:
  gateways:
  - bookinfo-gateway
  hosts:
  - "*"
  http:
  - match:
    - uri:
        exact: /headers
    route:
    - destination:
        host: httpbin
        subset: v1
      weight: 100
EOF

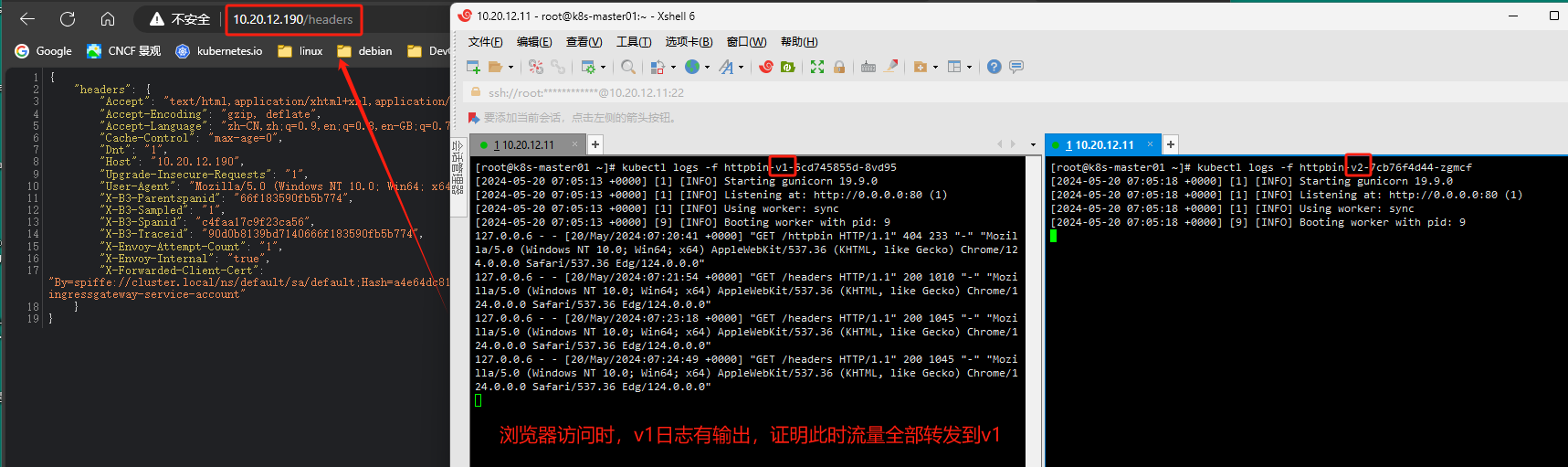

浏览器访问

流量镜像

将转发到v1的流量克隆一份到v2版本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
kubectl apply -f - <<EOF
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: httpbin
spec:
  gateways:
  - bookinfo-gateway
  hosts:
  - "*"
  http:
  - match:
    - uri:
        exact: /headers
    route:
    - destination:
        host: httpbin
        subset: v1
      weight: 100
    mirror:
      # 镜像目标
      host: httpbin
      subset: v2
    # 镜像比例100%
    mirrorPercentage:
      value: 100.0
EOF

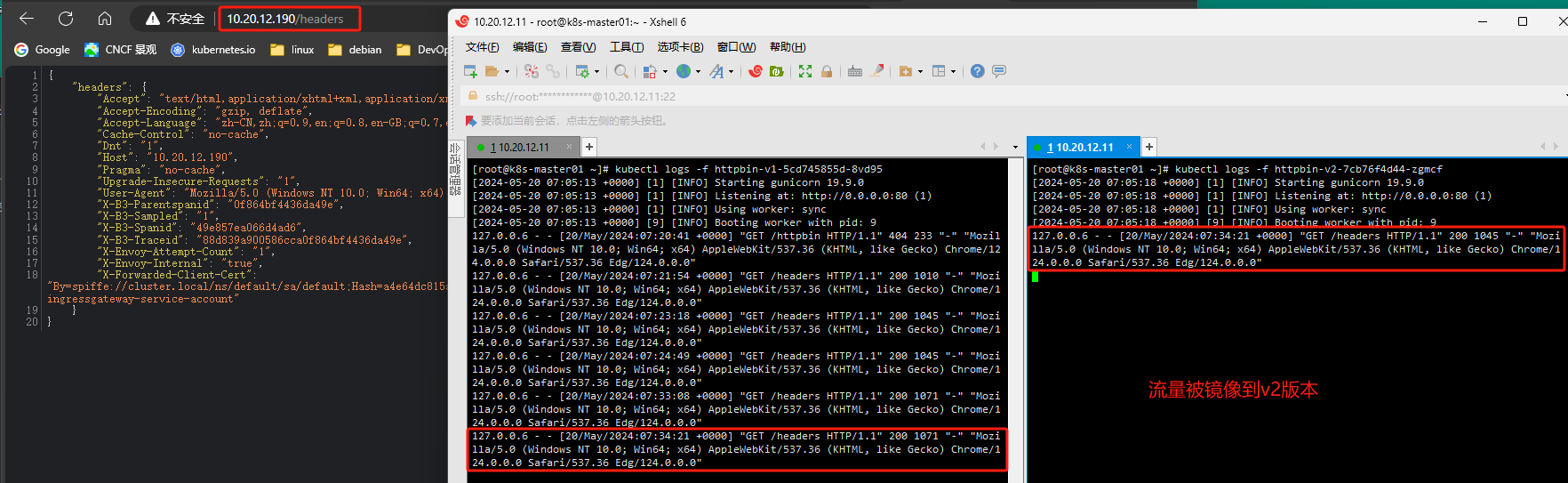

再次访问

重点注意这些被镜像的流量是『即发即弃』的，就是说镜像请求的响应会被丢弃，服务响应还是v1版本的
